Solar Wall & Fence Lights · SKU SV-W01

Carriage Solar Wall Lantern with Motion Sensor

A carriage-lantern silhouette hiding a modern PIR module: the Carriage wall lantern runs at a soft 30 lm glow, then jumps to 120 lm for 30 seconds when motion is detected within its 120-degree cone. Three modes (security, dim-to-bright, constant) are selected by a sealed button. Motion-sensor wall lights are the premium tier of the fence-and-entry segment - higher margin, lower return rates. Mounts with two screws; no wiring.

PIR motion boost from 30 lm ambient to 120 lm security light
120-degree detection cone, 3 factory-selectable modes
Two-screw installation - no electrician required
Classic carriage styling suits traditional and modern facades

MOQ from 100 pcs (placeholder) · Samples in ~7 days · FOB / CIF / DDP available

Technical Specifications

Solar Panel	Monocrystalline 5.5V / 1.5W (integrated top)
Battery	1 x 18650 Li-ion 1800mAh
LED & Lumens	Filament LED, 3000K, 30 lm standby / 120 lm PIR boost
Charging Time	6-8 hours direct sunlight
Working Time	8-12 hours standby; ~300 PIR triggers
IP Rating	IP65
Material	UV-stabilized ABS, glass-look PC panes
Size	140 x 110 x H210 mm
Packing & Carton Data	1 pc/color box; 24 pcs/ctn, 55x42x40 cm, 12 kg

Specifications are pre-production placeholders and can be tuned (lumen, CCT, battery, finish, packaging) to your program requirements.

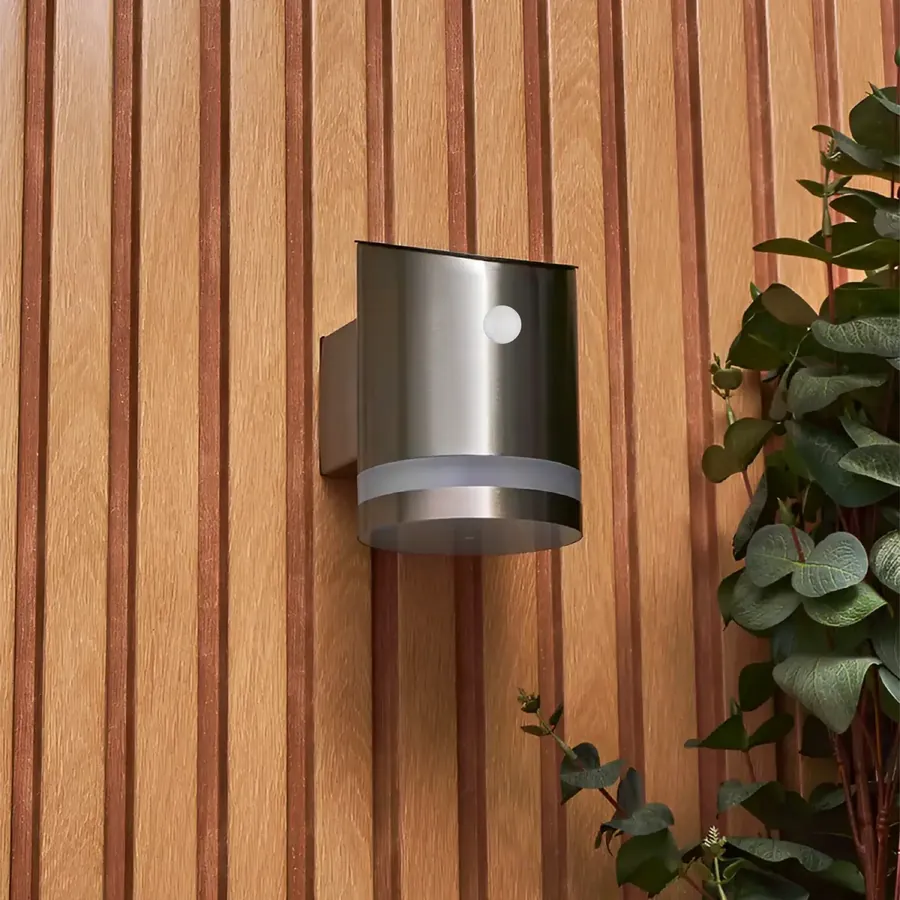

Application Scene

Entryways, garages and side passages

Mount flanking a front door or along side passages for welcome light plus motion-activated security. A stainless cylinder variant suits contemporary facades.

Need layout suggestions or photometric guidance for a project? Our team provides spacing plans and runtime simulations for wholesale and project buyers.

Discuss Your Project

Wholesale Buying Notes

How to Source Carriage Solar Wall Lantern with Motion Sensor in Bulk

Best assortment fit: This model is suited to entry, porch and perimeter ranges where a traditional wall lantern and motion response support a higher-value offer. Keep motion mode, detection behavior and mounting instructions prominent; these details help distributors compare it fairly with always-on decorative wall lights.

Compare quotations on the same specification: Ask every solar-light supplier to quote the configuration shown here: IP65 weather protection, 8-12 hours standby; ~300 PIR triggers working time and 1 x 18650 Li-ion 1800mAh. Unit prices are only comparable when the panel, battery, LED output, material and pack quantity are aligned.

Approve the order details: Use the current packing reference - 1 pc/color box; 24 pcs/ctn, 55x42x40 cm, 12 kg - as a starting point, then confirm final carton data, labeling, barcode, manual and retail packaging on the approved sample. For logo, packaging or performance changes, review our OEM and private-label solar light service or send the SKU and target quantity through the wholesale inquiry form.
